ANIVIA SG1000 Pump Console
The SG1000 Pump Console is a key component of the Anivia System, designed to drive disposable centrifugal pump heads in extracorporeal blood circuits. Its open-system architecture allows for interoperability with various disposable brands, offering flexible configurations to meet diverse clinical demands.

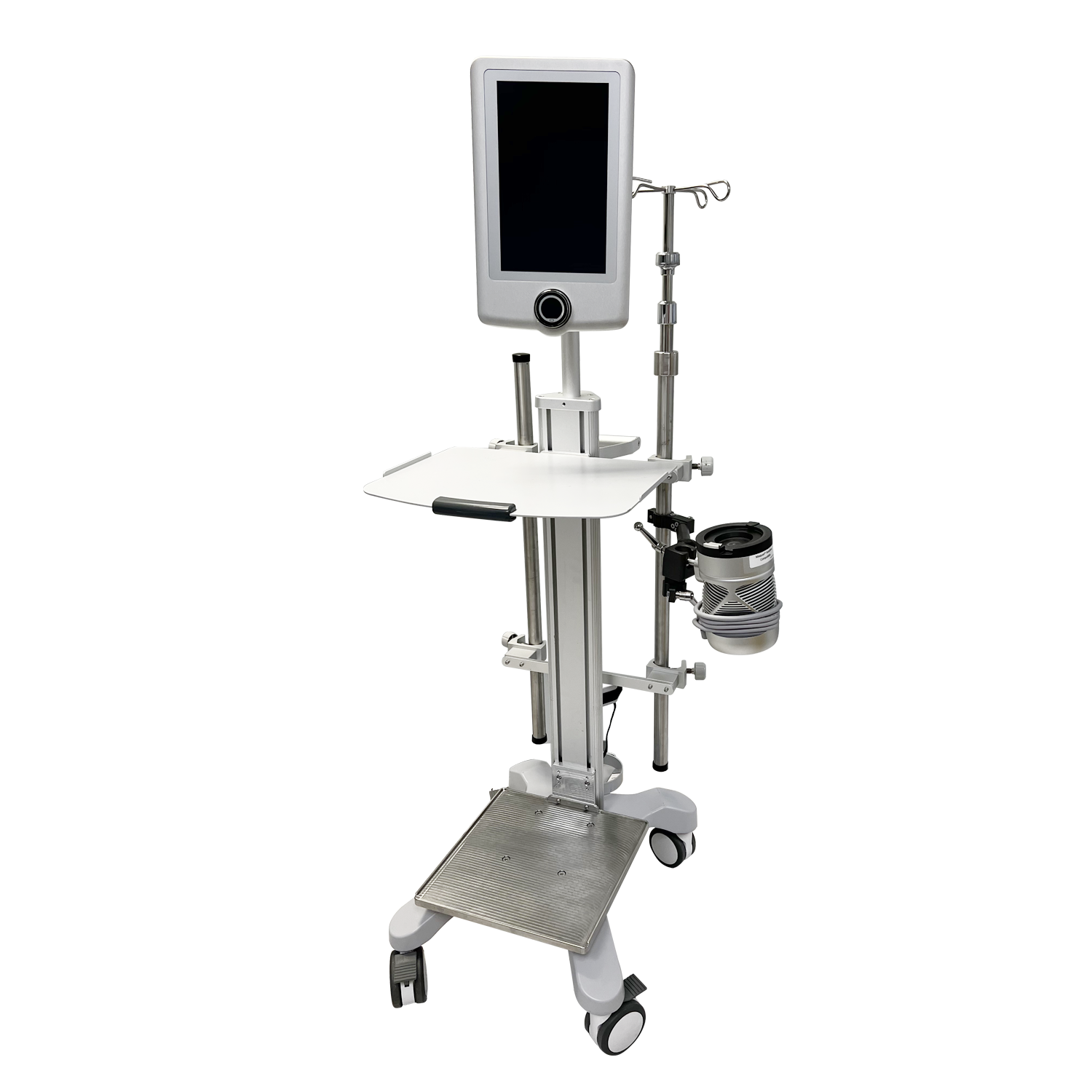

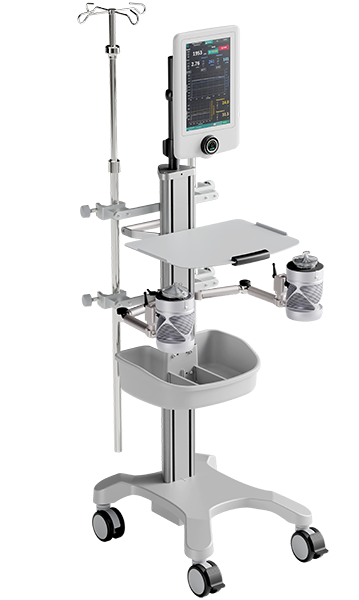

Freestanding Cart
The open-system design of the Anivia Console with flexible pump drives and control panel arrangement allows it to be assembled on a freestanding cart or mounted on an HLM cart and even more customized configurations to meet clinical demands. It also comes with a backup battery for at least one hour of runtime and allows for seamless power switching between the AC line and the backup battery. With its high flexibility and mobility, it streamlines operations for healthcare facilities.

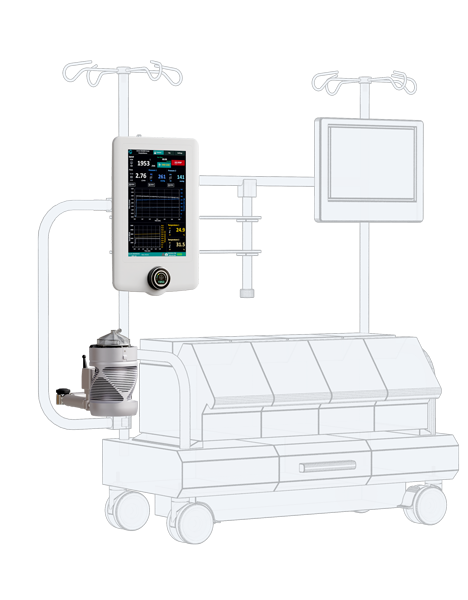

Mast Mounted
(on existing HLM Cart)
Our latest system design uses contactless magnetic drive and smart thermal control for continuous low bearing temperature operations. It offers a variety of pump drive options that compatible with common extracorporeal consumables. This enables rapid switchover at bedside for enhanced safety and effectiveness during procedures. Furthermore, it is an economical solution that reduces capital equipment expenses. it also requires only common training, thereby reducing the learning curve for healthcare professionals.

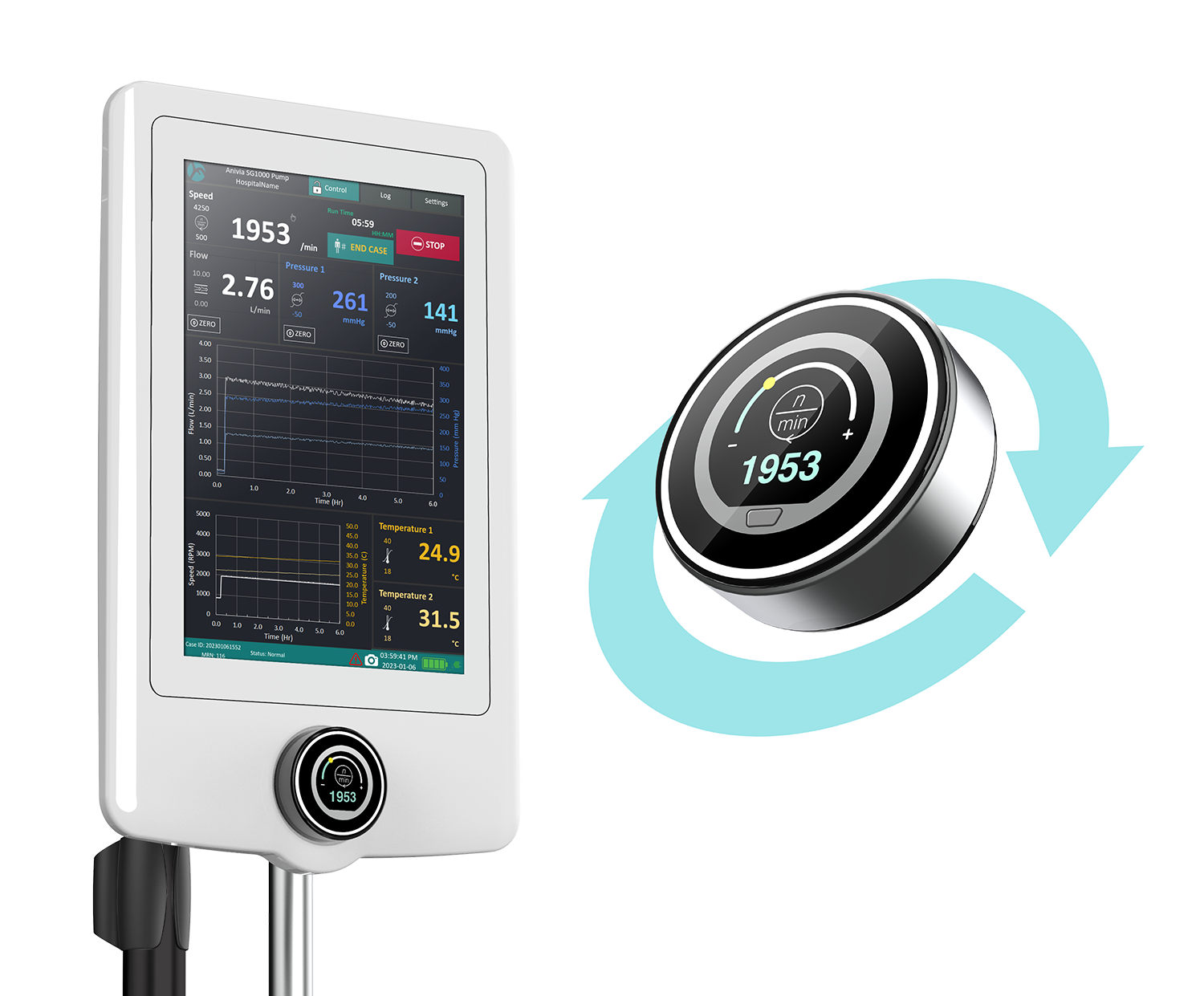

The control panel comes with a intuitive touch screen GUI that reveals comprehensive real-time data from multiple sensors for analysis of circuit flow and pressures. Multiple temperature data can also be recorded at different anatomical sites for advanced temperature management protocols. The built-in rotary knob with touch display allows user to adjust blood flow easily and provides instant feedback.
| Equivalent Centrifugal Pump Drives | Medtronic® 540T Drive Motor Maquet® Rotaflow Drive Unit 20-973 Medtronic® 560A External Drive Motor; LivaNova CP5 Drive Unit (60-01-04) and SCP Drive Unit (60-01-00); | Pump Driver Module Motor | Brushless DC (non-arcing) motor designed for continuous operations; Speed control: 300 – 5000 RPM |
| Medical Device Classifications | US FDA: Class II, 870.4380 DWA EU: Class Ilb: MDR Annex VIII China NMPA: Class III, code 10-05-01 Taiwan FDA: Class II, E.4220 | Uninterruptible Power Supply | At least 1 hour Mobile Power w/ Lithium battery pack, Smart Battery Management System complies with international safety and transport standards |
| Safety Standards Compliance | IEC 60601-1, IEC 60601-1-2, IEC 60601-1-8, IEC 62304, IEC 62366, IEC 60601-2-34, ISO 80601-2-56, IEC 80601-2-49, ISO 14971, ISO 13485, IEC 62133, UN 38.3, UL 2054, ISO 17664-2, ASTM D4169 | Reliability | Predictive Maintenance Smart Start-up System Diagnostics |
| Torque Transmission | Non-Contact Magnetic Drive | Communication Standards | CAN bus and RS-485 bus with CRC error checking |
| Blood Flow Rate | 0.1 – 10 LPM dependent on pump type, tube diameter and circuit conditions | Weight | Touch Display & Control: 4.5 kg Pump Driver Module: 3.5 kg Backup Battery Module: 3.3 kg |
| User Interface | High Definition Touch Screen Rotary Knob Touch Control Multi-Language Support | Dimensions | Touch Display & Control: 35 cm x 24 cm x 11 cm Pump Driver Module: 11.3 cm Ø x 17 cm H Backup Battery Module: 9.2 cm x 14 cm x 15 cm |
| External Sensors | Non-contact Clamp-On Ultrasonic Blood Flow and Bubble Sensor Pressure Sensors (X2) Temperature Sensors (X2) | Power | 100-240 VAC, 50/60 Hz 2.5 Amps @110VAC 1.25 Amps @220VAC |
Kits |
| SG1000-KIT-001: Mast Mounted Kit Kit Includes: 1 Display & Control Module, 1 Pump Driver Module, 1 Flow Bubble Sensor, Mechanical mounting accessories |
| SG1000-KIT-002: Freestanding Cart Kit
Kit Includes: 1 Display & Control Module, 1 Pump Driver Module, |

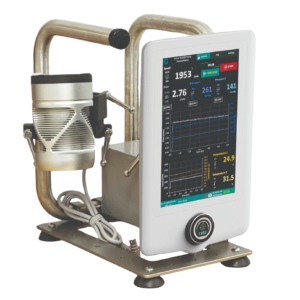

| SG1000-KIT-003: Tabletop Kit
Kit Includes: 1 Display & Control Module, 1 Pump Driver Module, |
Modules | |
| SG1000-DCM-001 |
Display & Control Module |
| SG1000-FBS-001 |
Flow Bubble Sensor for 3/8” Blood Tube |
| SG1000-FBS-002 |
Flow Bubble Sensor for 1/4” Blood Tube |
| SG1000-BBM-001 |
Backup Battery Module |

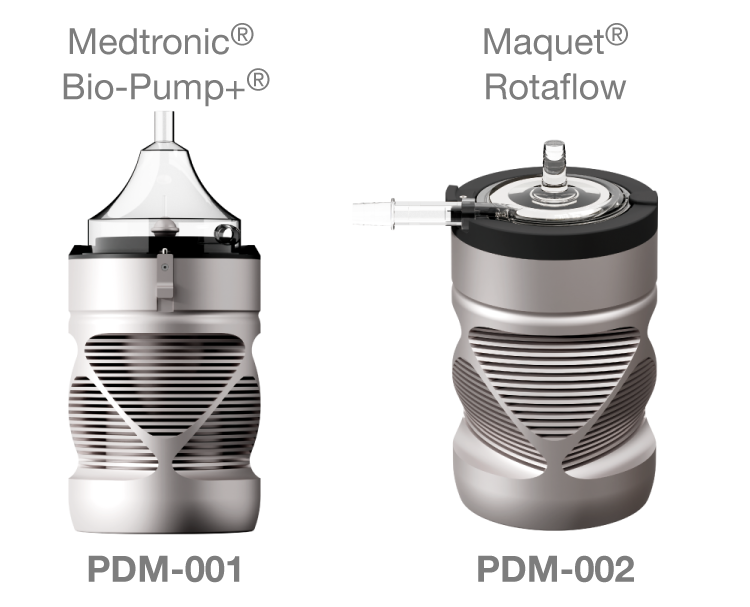

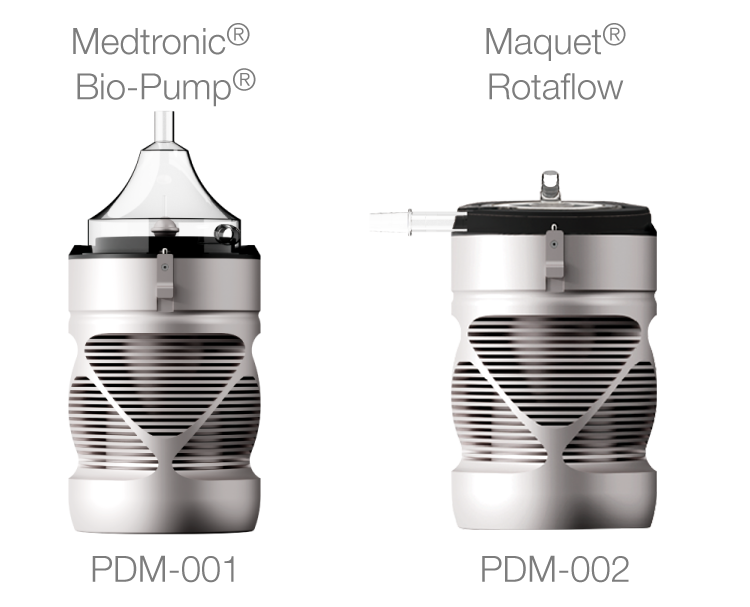

| SG1000-PDM-001 | Pump Driver Module; equivalent to Medtronic® 540T Drive Motor; compatible with Medtronic® Bio-Pump+® Pump Heads |
| SG1000-PDM-002 | Pump Driver Module; equivalent to Maquet® Rotaflow Drive Unit 20-973; compatible with Rotaflow RF-32 Pump Heads |

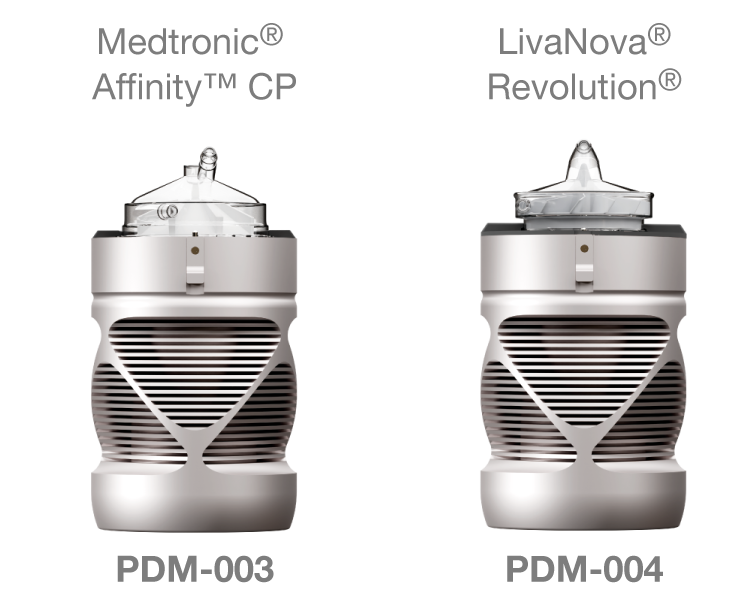

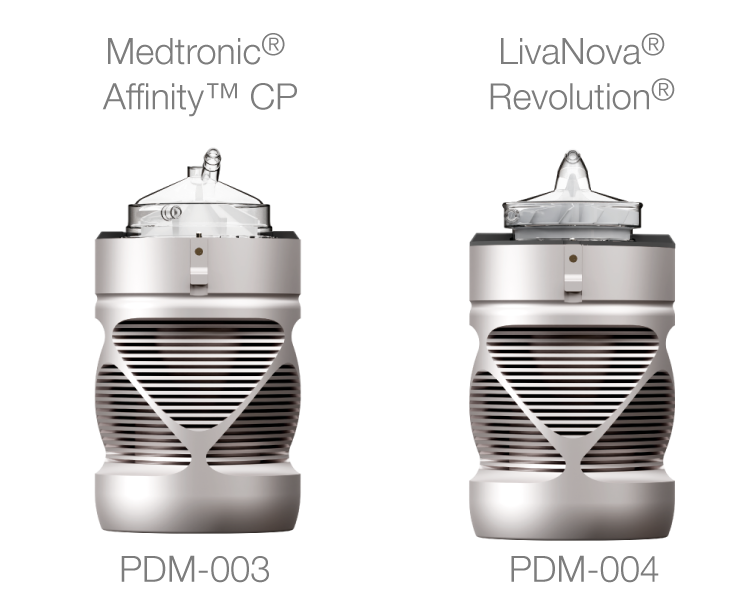

| SG1000-PDM-003 | Pump Driver Module; equivalent to Medtronic® 560A External Drive Motor; compatible with Medtronic® Affinity™ CP Pump Heads |
| SG1000-PDM-004 | Pump Driver Module; equivalent to LivaNova® CP5 Drive Unit (60-01-04) and SCP Drive Unit (60-01-00); compatible with Livanova® Revolution® Pump Heads |
| *SG1000-LSA-001 | Liquid Level Sensor Adaptor Module *Not Available for Sale within the United States |
Maquet Rotaflow is manufactured by Getinge AB. Trademarks may be registered and are the property of their respective owners.
CS-0510-MKT-00001 Rev. B
